1 Channel Wireless RF Remote Control 433MHZ Relay Switch Transmitter+Receiver For Garage Door
1. Wireless Remote Control:
- Application: Garage Door, Household Electrical Appliances, RGB lights
- Suitable for all lights
- Fast response and long control distance
- Stable performance and strong to resist interference, not obstructed by walls and furniture
- Double control: wall switch function and control function
- Safety, the shell applies to the fire-retardant material
- Energy-saving and environment protection
- Easy to install, just wire connection, simple to use
- Operating voltage: 12V
- Frequency: 433MHZ
- Reference distance: 150 meters (This is the theory distance in open environment without interference,
practical application due to the interference environment and decreased)
- Current job: 9~12mA
- Transmitting power: 10-15mw
- Frequency deviation: ± 0.2MHz
- Battery: 23A Battery (Battery is NOT included)
- Material: ABS Plastic
- Size: approx. 58 x 38 x 15mm (L*W*H)

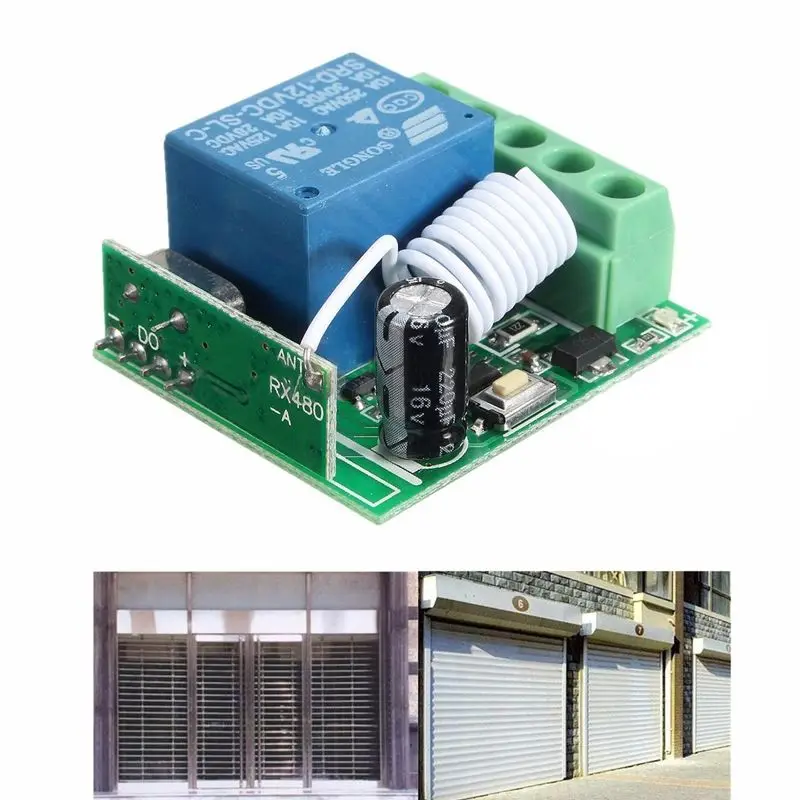

2. 1 Channel Wireless Relay Switch Receiver:
- Input Voltage: DC10-14V
- Working Voltage: DC 12V
- Output Current: 10A
- Rated Load: 10A 250V AC/ 10A 125V AC; 10A 30V DC/ 10A 28V DC
- Standby Current: ＜5MA
- RF Frequency: 433MHZ
- RF Working Mode: Super heterodyne receiver
- Receiver Sensitivity: >90dBm
- Remote Control Distance: >100 meter (In open environment)
- Decoding Way: MCU Software decoding
- Can Store The Number Of Remote Control: 50
- Support Remote Control Type: Fixed code, learning code
- Channel: 1CH
- Multiple Working Modes: (Jog/Non-Latched ,inter-lock/Latched ,self-lock /Self-Latched,Delay off)
- Wiring Method: Fixed wiring terminal
- Output: Normally open, Common, Normally closed
- Size: approx. 3.5 x 3 x 1.6cm
1) Jog/Non-Latched: Press one button is Working/ON. Loosen your finger on the same button is Stop/OFF. One
channel switch need one buttons remote control.
2) Self -lock/Self-Latched: Press one button for one time is working/ON. Press the same button again is stop/OFF.
One channel switch need one buttons remote control.
3) Inter-lock/Latched: Press one button is working/ON, press another button is stop/OFF. One channel switch need
2 buttons remote control.
Note: If want to change the modes, need delete the present learning mode (Press the white learning button on the
control panel eight times), and then re-learn the new features.
Tips of Learn and Remove Code:
(1) Learn: Press the learning code, the indicator flash, loosen your finger, press any button of the remote control
the indicator flash 2 times and off, it mean you learn it successfully.
(2) It can learn 2272 2262 or 1527 chip with the different code wireless 433MHz remote control.
(3) Remove/Clean: Press the learning button about 8 seconds, the indicator turn on to off, it means the information
that you keep have been removed successfully.
- 1pc x Wireless Remote Control (Battery is not included)
- 1pc x 12V 1 Channel Wireless Relay Switch Receiver
