- Working voltage: DC 12V
- Working frequency: 315MHZ
- Quiescent current: ≤ 10mA
- Contact capacity: ≤ 7A
- Remote control distance: 20~100 meters or more (this is equipped with different remote control in the open remote control of the actual distance)
- Encoding type: fixed code (2272/2294-M4 chip), pad code
- Size: approx. 36 x 32 x 20mm (L*W*T), shell size: 40 x 40 x 26mm (L*W*T)

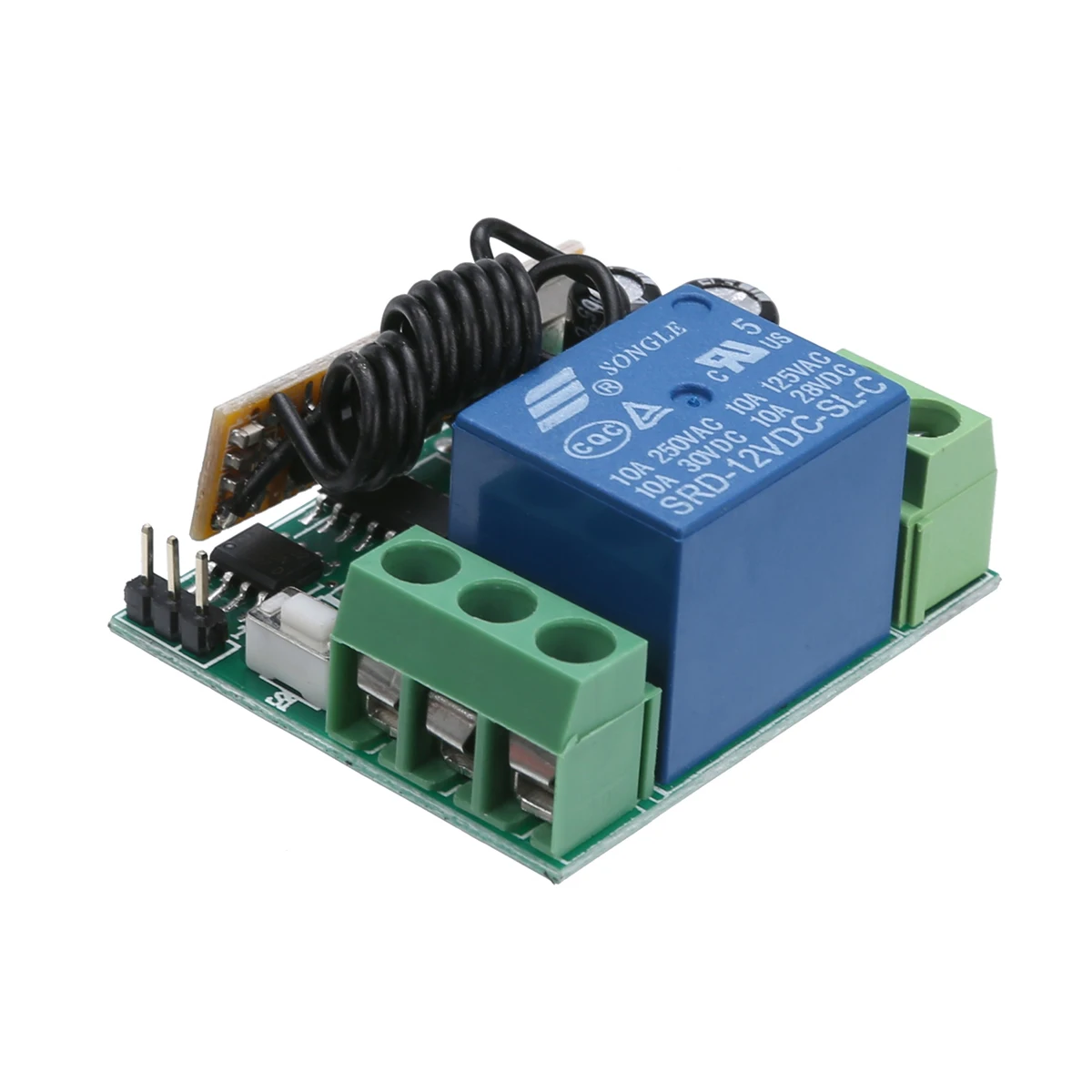

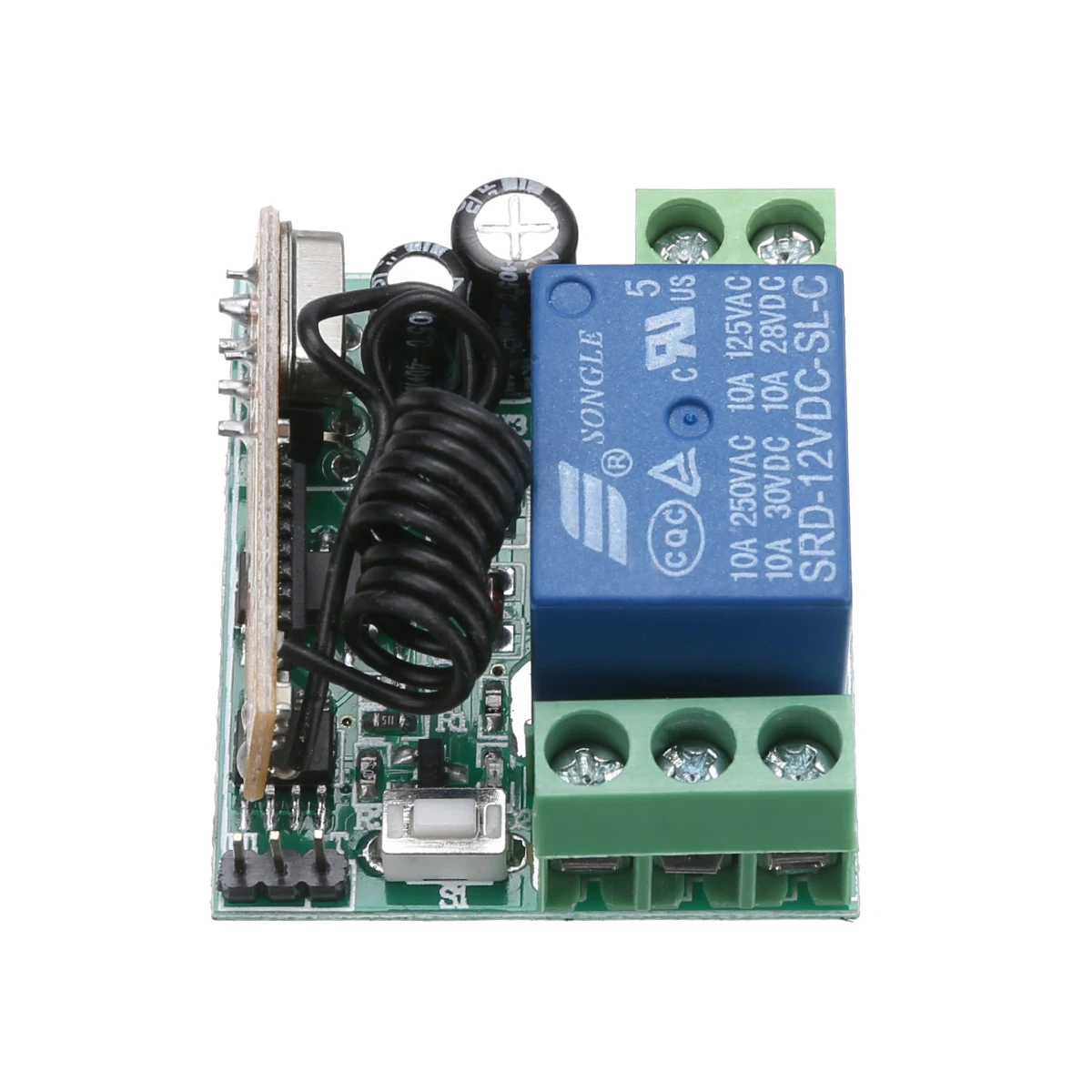

- Output mode: relay normally open normally closed passive contact (switch output)Control DC12V electronic control lock, electric control lock coil of the two lines were received to the receiver board normally open contacts and public contacts, the receiver board connected to the DC12V power supply can be. The coil in this circuit if replaced by a siren, it becomes a set of emergency alarm device, remote control press the alarm on the ring, release the sound stopped.
- Due to light and screen difference, the item's color may be slightly different from the pictures.
- Please allow 1-10mm deviation due to manual measurement.

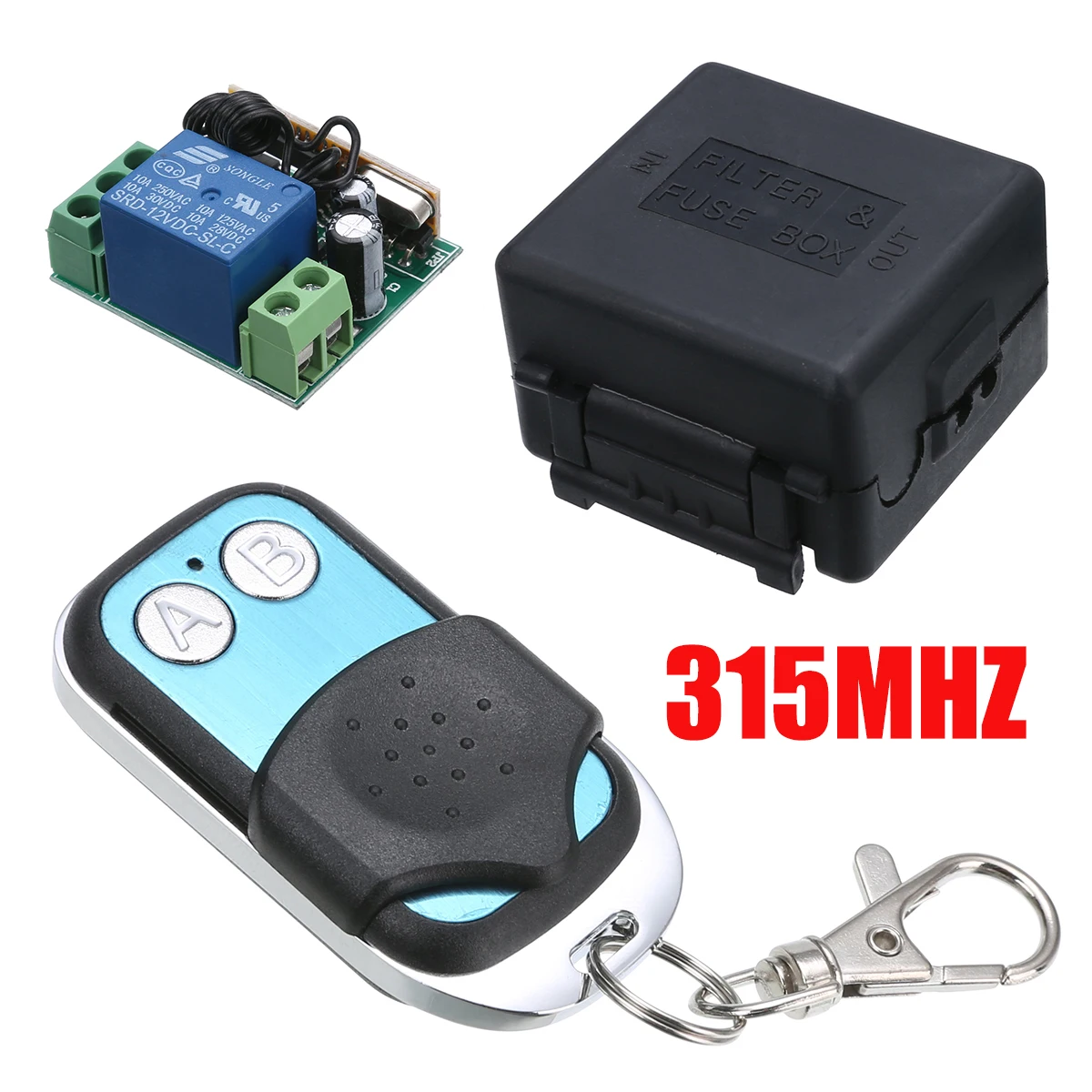

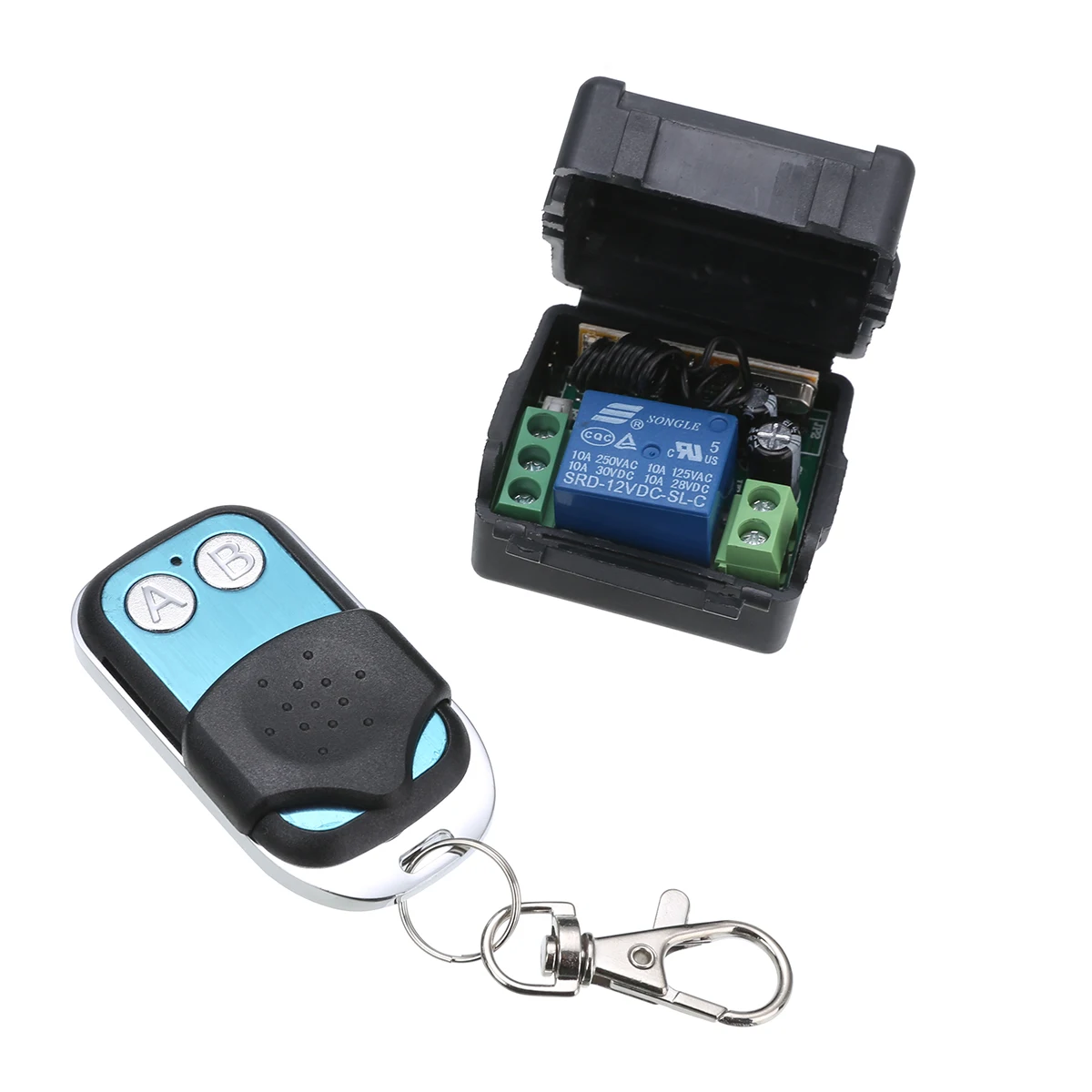

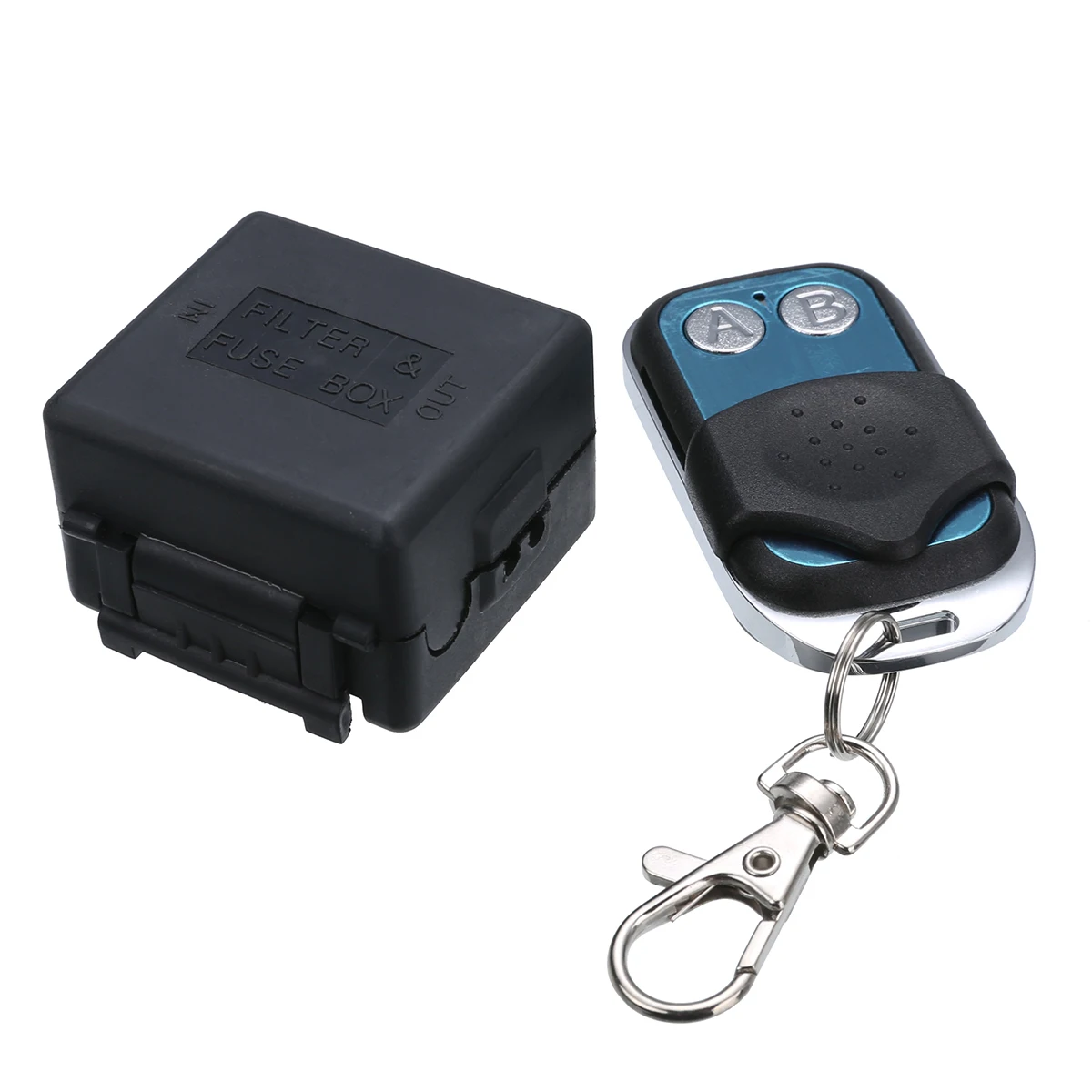

- 1pc x Receiver
- 1pc x Transmitter ((Battery NOT included)
